Praat 脚本 | 测算发音人的音域范围

作者：熊子瑜
脚本ID：Praat.XZY20211214.021
上传时间：2021年12月14日

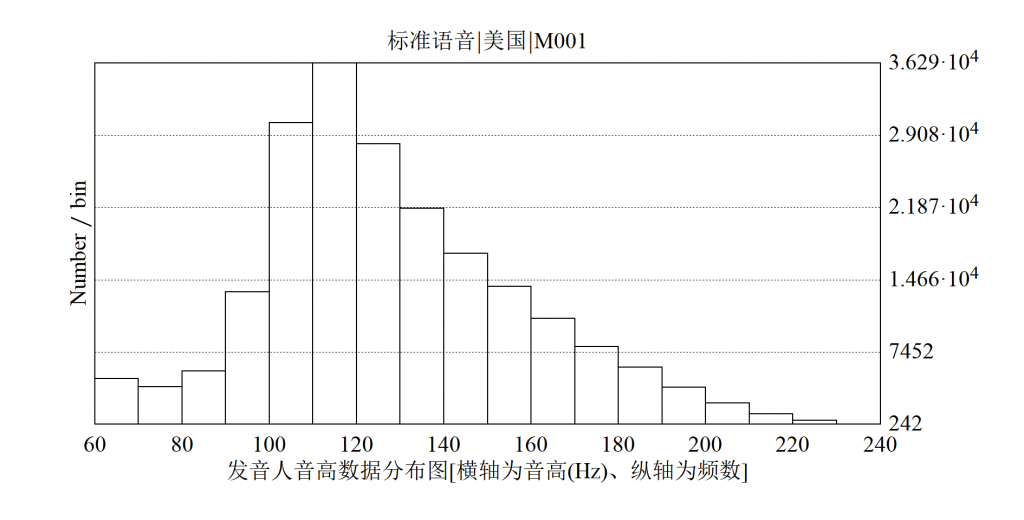

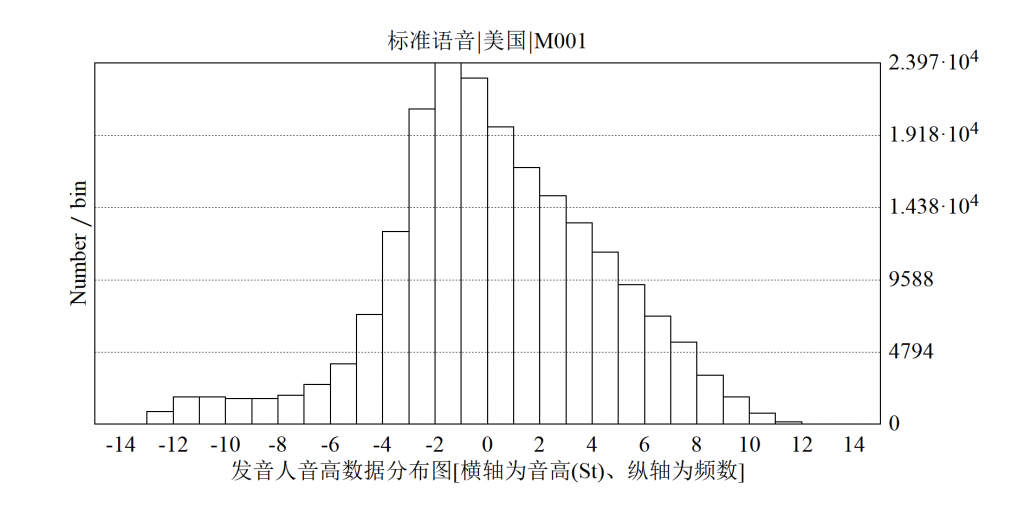

简介：此脚本可针对用户所指定的某个声音文件夹（全路径，以“\”结束），对每个声音文件所对应的PitchTier文件或Pitch文件进行分析（PitchTier文件优先，其次是Pitch文件），从这些音高数据文件中提取出该发音人的全部音高数据，然后将超出用户所设定的频率范围的音高数据予以剔除，还可以根据需要将频率数据转换为半音，最后测算出发音人的音高基本数据（如均值、标准差等）， 并绘制出音高数据的频数分布图。下面给出了某发音人的音高数据的频数分布图，上图是Hz标度，下图是半音标度，有效音高数据范围均设定为60Hz至240Hz，转换为半音时所采用的参考频率为发音人的音高中值。

查看详情 | 点此下载该脚本程序

#By XIONG Ziyu
#last modify: 2021/12/30
#Praat version: 6.1.05
#功能：针对用户所指定的某个声音文件夹（全路径，以“\”结束），
#      对每个声音文件所对应的PitchTier文件或Pitch文件进行分析，
#      PitchTier文件优先，其次是Pitch文件，
#      从这些音高数据文件中提取出全部音高数据，并据此测算出发音人的音高基本数据:
#      音高均值、音高标准差、音高中值、音域上限（97.5%）、音域下限（2.5%）等；
#      脚本程序还会绘制出音高数据的频数分布图，以帮助用户确定发音人的音域范围，
#      可以选择采用Hz标度，还是采用半音标度，
#      如果选择半音标度，脚本程序会以发音人的音高中值为参考率进行转换。

form 测算发音人的音域范围
	sentence Sound_FilePath_(声音路径) F:\语音库\北京\ABC\
	sentence Speaker_Code_(发音人编码)
	positive Pitch_Max_(上限频率:Hz) 600
	positive Pitch_Min_(下限频率:Hz) 60
	real Stylized_(简化音高点:半音) 0
	real Smooth_Pitch_(平滑处理:Hz) 10
	boolean Semitones_(作图时换算为半音) 1
endform

#清空主窗口对象列表中的数据对象
Create TextGrid: 0, 1, "Mary John bell", "bell"
select all
Remove

#将Praat读取和存储文本文件的编码格式设定为UTF8，避免汉字乱码
Text reading preferences: "UTF-8"
Text writing preferences: "UTF-8"

#判断是文件路径还是文件名列表
sound_FilePath$=replace$(sound_FilePath$,"/","\",0)
if right$(sound_FilePath$,1)!="\"
	sound_FilePath$=sound_FilePath$+"\"
endif
danwei$="Hz"
if semitones=1
	danwei$="St"
endif

Create Strings as file list: "List", "'sound_FilePath$'*.wav"
selectObject: "Strings List"
fileNum=Get number of strings
if fileNum=0
	exitScript: "没有发现声音文件！"+newline$+newline$
else
	spkData$=left$(sound_FilePath$,length(sound_FilePath$)-1)+"('pitch_Min'-'pitch_Max')-'danwei$'-'stylized:1'-'smooth_Pitch:0'.ini"
	call GETSPEAKERDATA
endif

Create TextGrid: 0, 1, "Mary John bell", "bell"
select all
Remove
exitScript: "操作过程已结束，请检查数据结果！"+newline$+newline$

procedure GETSPEAKERDATA
	Create Table with column names: "ALL", 0, "value stylize"
	Create Table with column names: "STYLIZED", 0, "value"
	aNum=0
	sNum=0
	allCount=0
	oriCount=0
	allDuration=0
	chafen=0
	chafenNum=0
	for f from 1 to fileNum
		selectObject: "Strings List"
		filename$=Get string: 'f'
		filename$=sound_FilePath$+filename$
		soundfile$=filename$
		pitchfile$=filename$-".wav"+".Pitch"
		pitchtierfile$=filename$-".wav"+".PitchTier"
		stylefile$=filename$-".wav"+"('pitch_Min'-'pitch_Max')-'danwei$'-'stylized:1'-'smooth_Pitch:0'.Stylized"
		echo 'f'/'fileNum''newline$''soundfile$'

		dataok=0
		if fileReadable(pitchtierfile$)
			Read from file: "'pitchtierfile$'"
			dataok=1
		endif
		if dataok=0 and fileReadable(pitchfile$)
			Read from file: "'pitchfile$'"
			Down to PitchTier
			Save as text file: "'pitchtierfile$'"
			dataok=1
		endif

		if dataok=1
			sname$=selected$("PitchTier")
			pNums=Get number of points
			oriCount=oriCount+pNums
			kk=0
			for p from 1 to pNums
				v=Get value at index: 'p'
				if v>pitch_Max or v<pitch_Min
					Remove point: 'p'
					p=p-1
					pNums=pNums-1
				endif
			endfor
			pNums=Get number of points
			allCount=allCount+pNums

			if fileReadable(stylefile$)=0
				selectObject: "PitchTier 'sname$'"
				Copy: "TMP"
				if stylized>0 and smooth_Pitch>0
					To Pitch: 0.01, 'pitch_Min', 'pitch_Max'
					Smooth: 10
					Down to PitchTier
				endif
				if stylized>0
					Stylize: 'stylized', "Semitones"
				endif
				Rename: "STYLIZED"
				Save as text file: "'stylefile$'"
			else
				Read from file: "'stylefile$'"
				Rename: "STYLIZED"
			endif

			selectObject: "PitchTier 'sname$'"
			pNums=Get number of points
			for p from 1 to pNums
				v1'p'=Get value at index: 'p'
				t'p' =Get time from index: 'p'
			endfor

			stime=t1
			etime=t'pNums'
			duration=etime-stime
			allDuration=allDuration+duration

			selectObject: "PitchTier STYLIZED"
			for p from 1 to pNums
				t=t'p'
				v2'p'=Get value at time: 't'
			endfor

			selectObject: "Table ALL"
			for p from 1 to pNums
				v1=v1'p'
				v2=v2'p'
				Append row
				aNum=aNum+1
				Set numeric value: 'aNum', "value", 'v1:1'
				Set numeric value: 'aNum', "stylize", 'v2:1'
			endfor

			selectObject: "PitchTier STYLIZED"
			prev=0
			pNums=Get number of points
			for p from 1 to pNums
				v'p'=Get value at index: 'p'
				if p>1
					v=v'p'
					st=((12*log10(v/prev)/log10(2))^2)^0.5
					chafen=chafen+st
					chafenNum=chafenNum+1
				endif
				prev=v'p'
			endfor
			selectObject: "Table STYLIZED"
			for p from 1 to pNums
				v=v'p'
				Append row
				sNum=sNum+1
				Set numeric value: 'sNum', "value", 'v:1'
			endfor
		endif
		Create TextGrid: 0, 1, "Mary John bell", "bell"
		select all
		minus Strings List
		minus Table ALL
		minus Table STYLIZED
		Remove
	endfor
	call DRAWDATA STYLIZED
endproc

procedure DRAWDATA tName$
	Erase all
	clearinfo
	filedelete 'spkData$'

	selectObject: "Table ALL"
	relation$=Report correlation (Pearson r): "value", "stylize", 0.025
	rel=extractNumber(relation$,"=")
	rel='rel:3'

	selectObject: "Table 'tName$'"
	newCount=Get number of rows
	pMid=Get quantile: "value", 0.5
	ospkMid=pMid
	if semitones=1
		selectObject: "Table 'tName$'"
		Formula: "value", "12*log10(self/'pMid')/log10(2)"
	endif
	if newCount>0
		spkMean=Get mean: "value"
		spkStdv=Get standard deviation: "value"
		spkMax=Get quantile: "value", 0.975
		spkMid=Get quantile: "value", 0.50
		spkMin=Get quantile: "value", 0.025
		pmin=Get minimum: "value"
		pmax=Get maximum: "value"
		if semitones=0
			cmin=floor(pmin/10)*10
			cmax=ceiling(pmax/10)*10
		else
			cmin=-15
			cmax=15
		endif
		cmin='cmin:0'
		cmax='cmax:0'
		if semitones=0
			nums=ceiling((cmax-cmin)/10)
			step=20
			if cmax-cmin>200
				nums=ceiling((cmax-cmin)/15)
				step=30
			endif
			if cmax-cmin>280
				nums=ceiling((cmax-cmin)/20)
				step=40
			endif
		else
			nums=ceiling((cmax-cmin))
			step=2
		endif
		Down to Matrix
		Black
		Axes: 0, 1, 0, 1
		Select outer viewport: 0, 6, 0, 3
		Draw rectangle: 0, 1, 0, 1
		Text left: "no", "Number / bin"
		Draw distribution: 0, 0, 0, 0, 'cmin', 'cmax', 'nums', 0, 0, "no"
		Marks right: 6, "yes", "no", "yes"
		Marks bottom every: 1, 'step', "yes", "no", "no"
		cFilePath$=right$(sound_FilePath$,length(sound_FilePath$)-2)
		marker$="\语音库\"
		if index(cFilePath$,marker$)>0
			cFilePath$=right$(cFilePath$,length(cFilePath$)-index(cFilePath$,marker$)-length(marker$)+1)
		endif
		cFilePath$=left$(cFilePath$,length(cFilePath$)-1)
		cFilePath$=replace$(cFilePath$,"\","|",0)
		if speaker_Code$!=""
			cFilePath$=left$(cFilePath$,rindex(cFilePath$,"|"))+speaker_Code$
		endif
		percent=round(newCount/allCount*1000)/10
		Text top: "no", "音高数据分布图：'cFilePath$'"
		Text bottom: "yes", "[横坐标单位:'danwei$'，Smooth:'smooth_Pitch'Hz，Stylized:'stylized'St，剩余音高点数占比:'percent'，r='rel']"
		Axes: 0, 1, 0, 1
		Text special: 0.5, "Centre", -0.22, "Half", "Times", 10, "0", "[取值范围:'pitch_Min'Hz-'pitch_Max'Hz，中值:'ospkMid:1'Hz，总音高点数:'oriCount'个，有效音高点数:'allCount'个]"
		Axes: 0, 1, 0, 1
		Select outer viewport: 0, 0.5, 0, 0.5
		Paint rectangle: "white", 0, 1, 0, 1
		png$=spkData$-".ini"+".png"
		Axes: 0, 1, 0, 1
		Select outer viewport: 0, 6.3, 0, 3.2
		Save as 300-dpi PNG file: "'png$'"
		selectObject: "Table 'tName$'"
		plusObject: "Matrix 'tName$'"
		Remove
		info$=newline$
		info$=info$+"输入控制参数信息如下：'newline$'"
		info$=info$+"1.声音文件路径：'sound_FilePath$''newline$'"
		info$=info$+"2.用户设定的发音人代码：'speaker_Code$''newline$'"
		info$=info$+"3.用户设定的有效音高上限：'pitch_Max:0'Hz'newline$'"
		info$=info$+"4.用户设定的有效音高下限：'pitch_Min:0'Hz'newline$'"
		info$=info$+"5.是否转换为半音标度（1为是，0为否）：'semitones''newline$'"
		info$=info$+"6.Smooth平滑处理的阈值：'smooth_Pitch'Hz'newline$'"
		info$=info$+"7.Stylize简化处理的阈值：'stylized'St'newline$'"
		info$=info$+"'newline$'音高数据分析结果如下：'newline$'"
		info$=info$+"1.声音文件个数：'fileNum:0'个'newline$'"
		info$=info$+"2.声音总时长：'allDuration:3'秒'newline$'"
		percent=round(allCount*0.01/allDuration*1000)/10
		info$=info$+"3.带音段时长占比：'percent:1'%'newline$'"
		info$=info$+"4.全部音高数据点个数(oriCount)：'oriCount:0'个'newline$'"
		percent=round(allCount/oriCount*1000)/10
		info$=info$+"5.['pitch_Min'Hz-'pitch_Max'Hz]内的有效音高数据点个数(allCount)：'allCount:0'个，占oriCount的'percent:1'%'newline$'"
		percent=round(newCount/allCount*1000)/10
		info$=info$+"6.Stylize后的音高数据点个数：'newCount:0'个，占allCount的'percent:1'%'newline$'"
		info$=info$+"7.styli
ze后的音高数据和有效音高数据的相关系数：'rel''newline$'"
		info$=info$+"8.stylize后的发音人音高数据均值：'spkMean:1''danwei$''newline$'"
		info$=info$+"9.stylize后的发音人音高数据标准差：'spkStdv:1''danwei$''newline$'"
		info$=info$+"10.stylize后的发音人音高数据上限（97.5%）：'spkMax:1''danwei$''newline$'"
		info$=info$+"11.stylize后的发音人音高数据中值（50.0%）：'ospkMid:1'Hz'newline$'"
		info$=info$+"12.stylize后的发音人音高数据下限（2.5%）：'spkMin:1''danwei$''newline$'"
		info$=info$+"13.stylize后的发音人音高数据最大值：'pmax:1''danwei$''newline$'"
		info$=info$+"14.stylize后的发音人音高数据最小值：'pmin:1''danwei$''newline$'"
		chafen=(chafen/chafenNum)
		info$=info$+"15.stylize后的发音人音高数据相邻两点的平均音高变化：'chafen:1''danwei$''newline$'"
		info$=info$+"'newline$'图片文件：'png$''newline$'"
		info$=info$+"数据文件：'spkData$''newline$'"
		appendInfo: info$
		fileappend "'spkData$'" 'info$'
	endif
endproc
